build your first fpv cinelifter fpv drone // KD 9 tutorial

▬ CHAPTER ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
00:00 Intro
00:27 Part list
01:22 Frame Assembly
02:57 Upper Motors
04:19 Flight Electronics // ESCs
05:30 Lower Motors
07:03 Flight Controller
08:44 DJI O4 Airunit Pro
09:20 ESLR Receiver
09:48 KDCM Camera Mount
11:42 Final Frame Assembly
12:54 Battery Tray
13:25 Betaflight Setup

▬ DISCLAMER ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
The following links are affiliate links. If you order something through them, we receive a small commission at no extra cost to you.

▬ PART LIST ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
⇨ Frame: KD Drones KD9: https://www.kddrones.com/kd9
⇨ Camera Mount: KDCM https://www.kddrones.com/kdcm
⇨ Flightcontroller: T-Motor Velox F7 SE https://shop.tmotor.com/products/tmotor-velox-f7-se-flight-controller?srsltid=AfmBOopfDtpfO5XFW5r5zNzLKGi81w1FxmlqIjgfiVC2Uw_20WcjudFI
⇨ Motors: T-Motor Velox 2812 1155kv https://www.amazon.com/Brushless-Compatible-Multirotor-Freestyle-Cinelifter/dp/B0DRHLFZ3F?th=1
⇨ ESC: Foxeer Reaper F4 65A https://www.fpv24.com/de/foxeer/foxeer-reaper-f4-128k-65a-bl32-4in1-fpv-esc
⇨ VTX: DJI Air unit O4 Pro https://store.dji.com/de/product/dji-o4-air-unit-pro
⇨ Receiver: Radiomaster RP3 Nano ESLR https://www.fpv24.com/de/radiomaster/radiomaster-rp3-elrs-24ghz-nano-receiver
⇨ BEC: Mateksys BEC 12S Pro https://www.premium-modellbau.de/matek-bec-pro-12s-9-55v-zu-5v/8v/12v-einstellbar-bec12s-pro?gad_source=1&gclid=CjwKCAiAwaG9BhAREiwAdhv6Y8W5kVayM7k8hD2sAxDvBgJFFP4H-_0tfElZNcvAe0MhK3pOMefuGxoCcZgQAvD_BwE

▬ ADDITIONAL ITEMS ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
⇨ Zip Ties https://amzn.to/40QIcvB
⇨ MR30 Connectors https://amzn.to/3Eylst1
⇨ Caps https://amzn.to/42KvNft
⇨ Cable 14 AWG https://amzn.to/4hvmCUG
⇨ Cable 10 AWG https://amzn.to/4gAuWkw
⇨ JST SH1.0 Connectorset https://amzn.to/42Mb0bd

▬ TOOLS ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
⇨ Soldering Iron: https://amzn.to/4jRVDEb
⇨ Soldering Tin: https://shop.rc-hangar15.de/TBS-Loetzinn-100g-08mm-nur-mit-Gewerbeschein
⇨ Flux: https://shop.rc-hangar15.de/TBS-Flux-Loetflussmittel-Spritze-10ml

▬ SOURCES ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

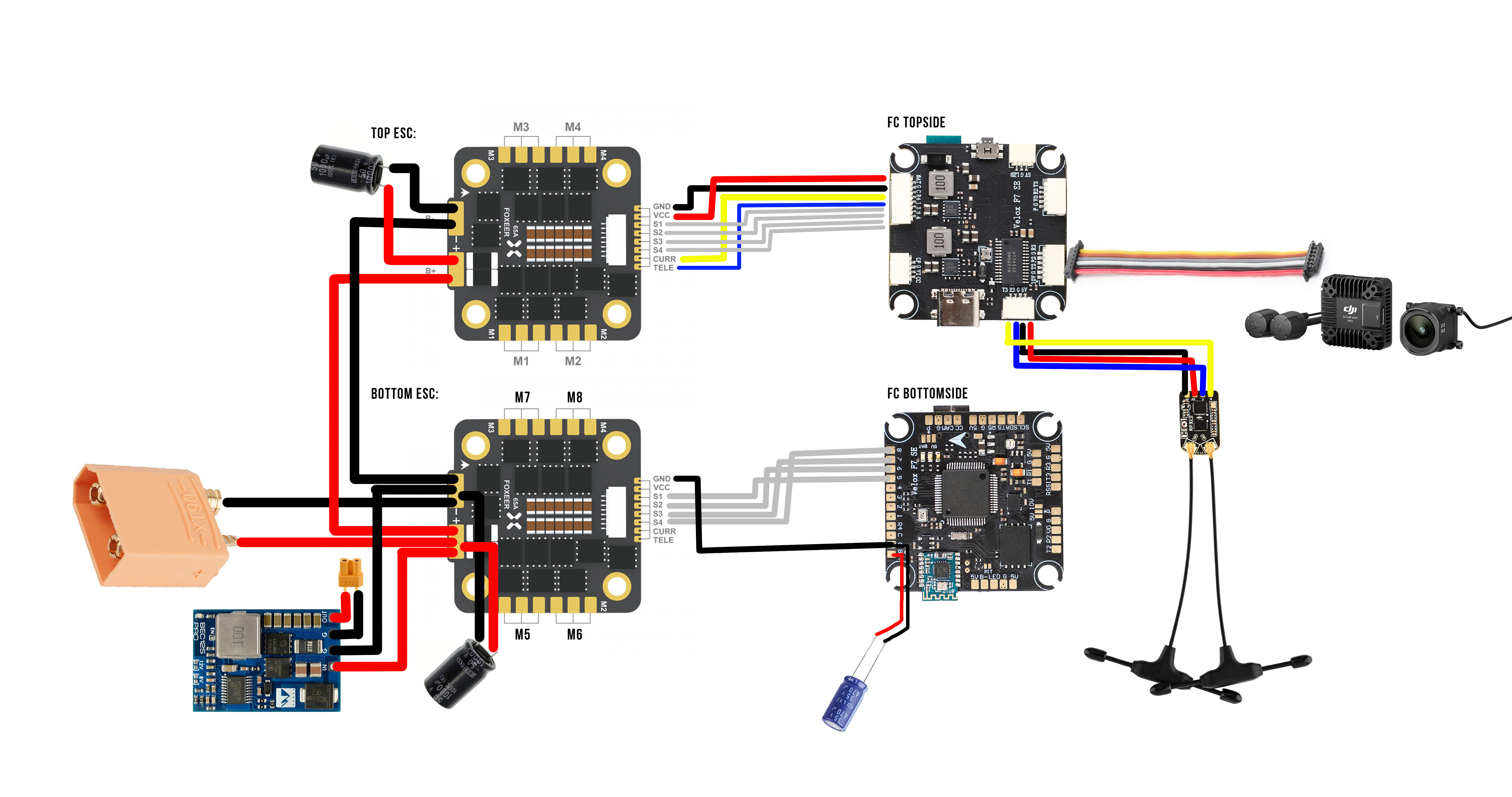

✔ WIRING DIAGRAM: https://www.thedrone.studio/download/PLAN_KD9.jpg
✔ KD9 XT 60 Mount: https://www.thedrone.studio/download/KD9_XT60.stl
✔ KD9 Elsr Mount: https://www.thedrone.studio/download/KD9_ELRS.stl
